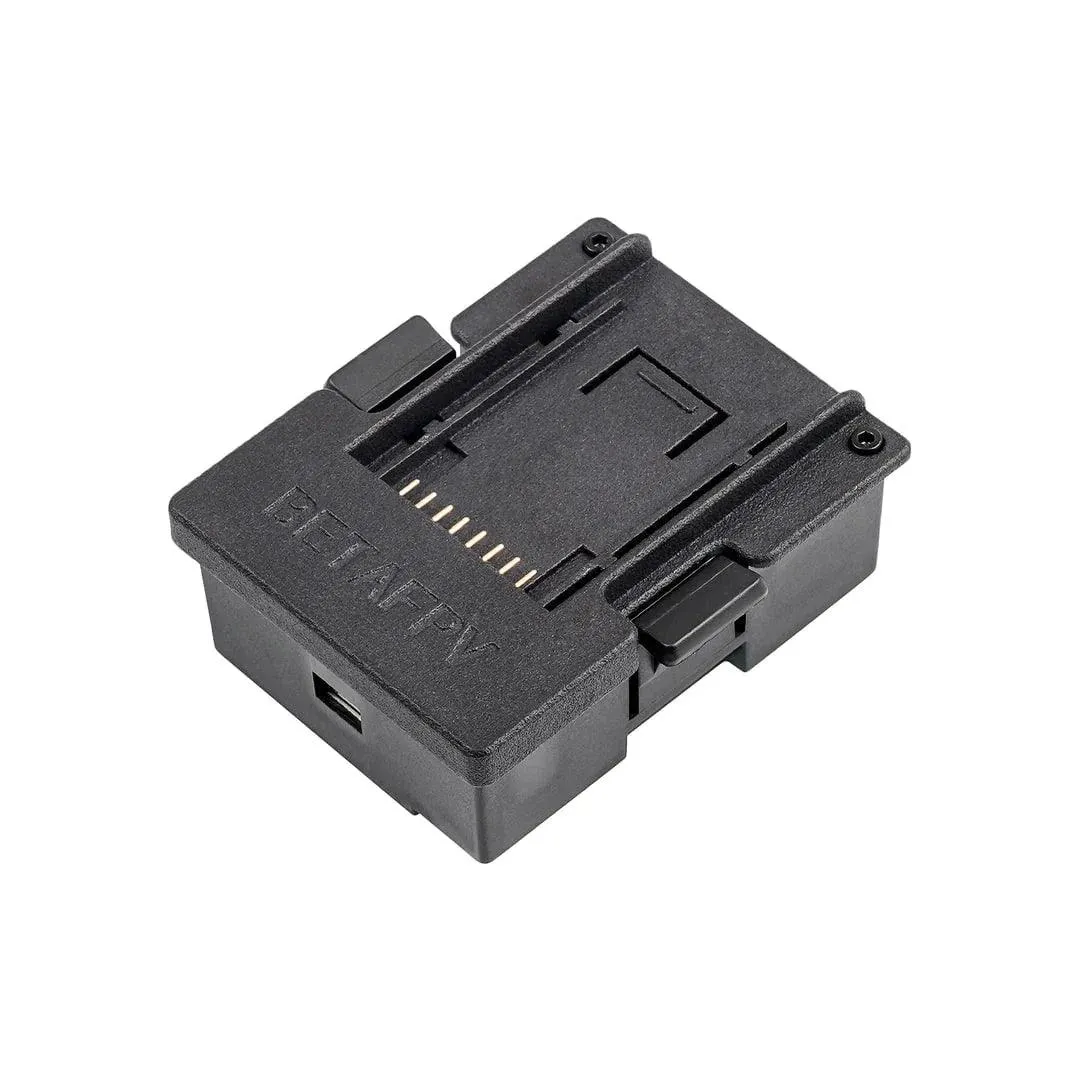

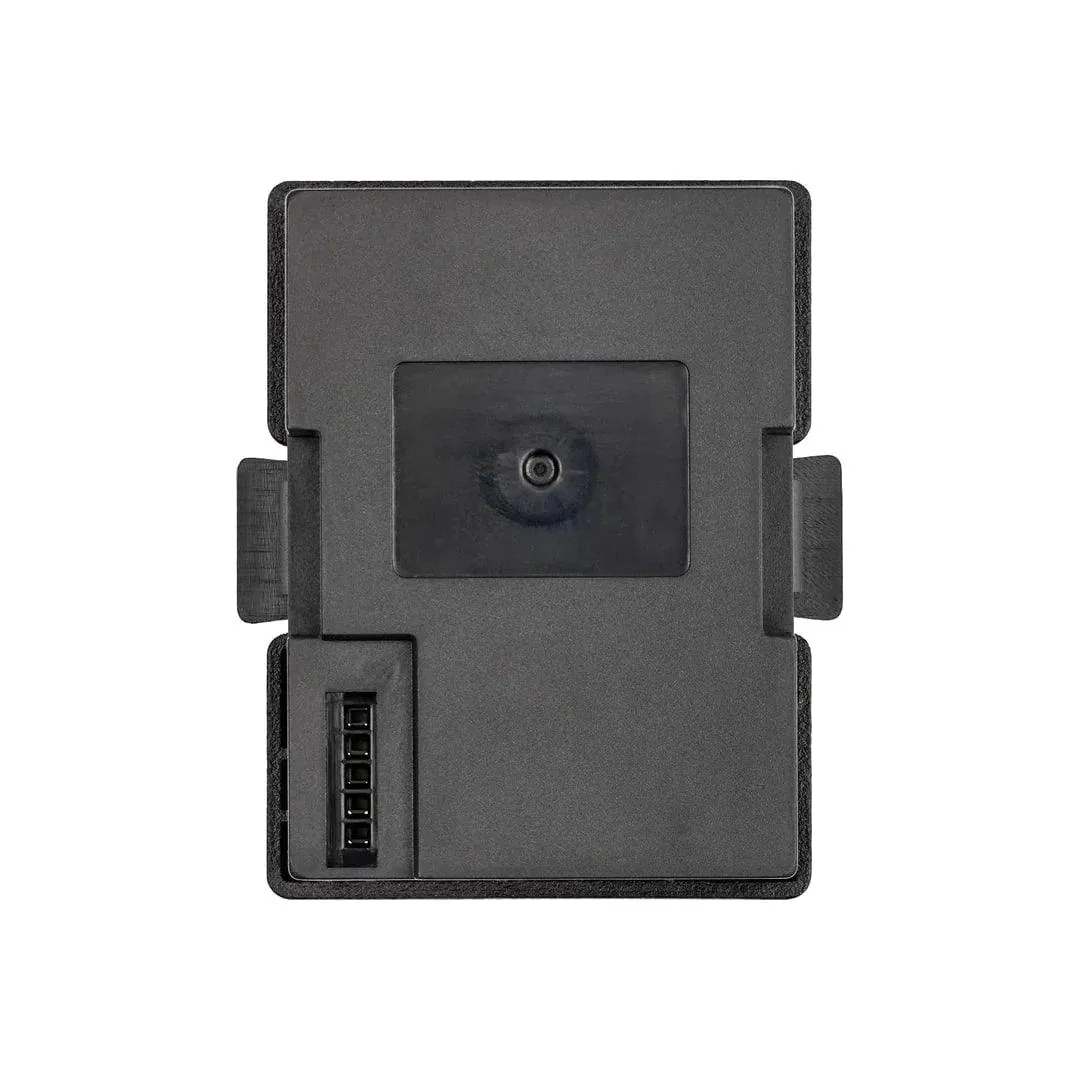

Both the full adapter and PCBA only are Beta FPV's most recently updated versions.

With the use of micro to nano module adapter, a nano tx module can work on transmitters with JR module bay (aka Micro module port) easily!

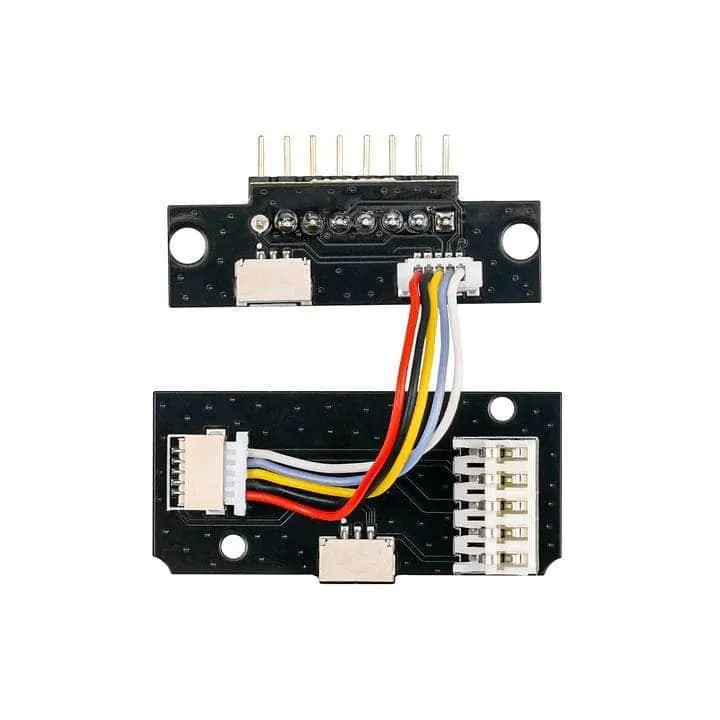

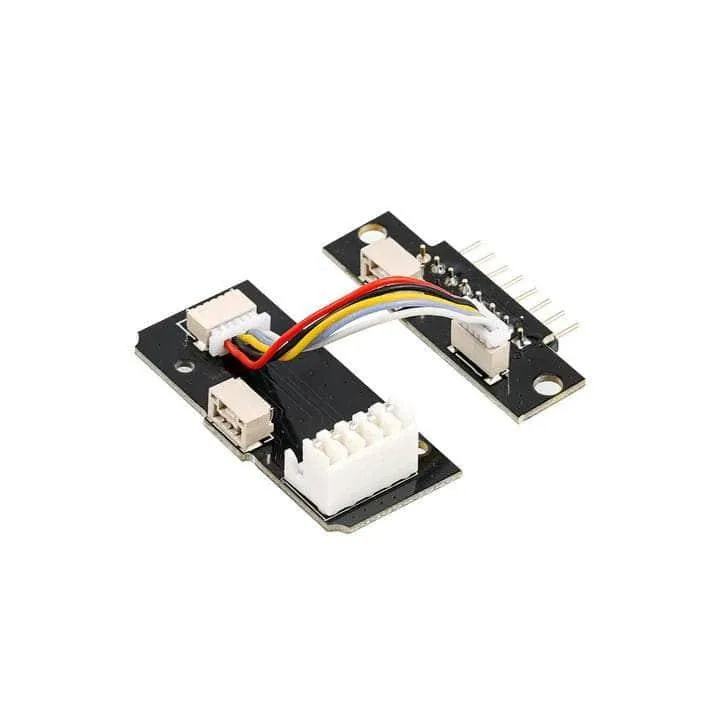

The Micro to Nano Module Adapter (PCBA) is available for those who can print the case for themselves. You can download the  on Beta FPV's technical support page.

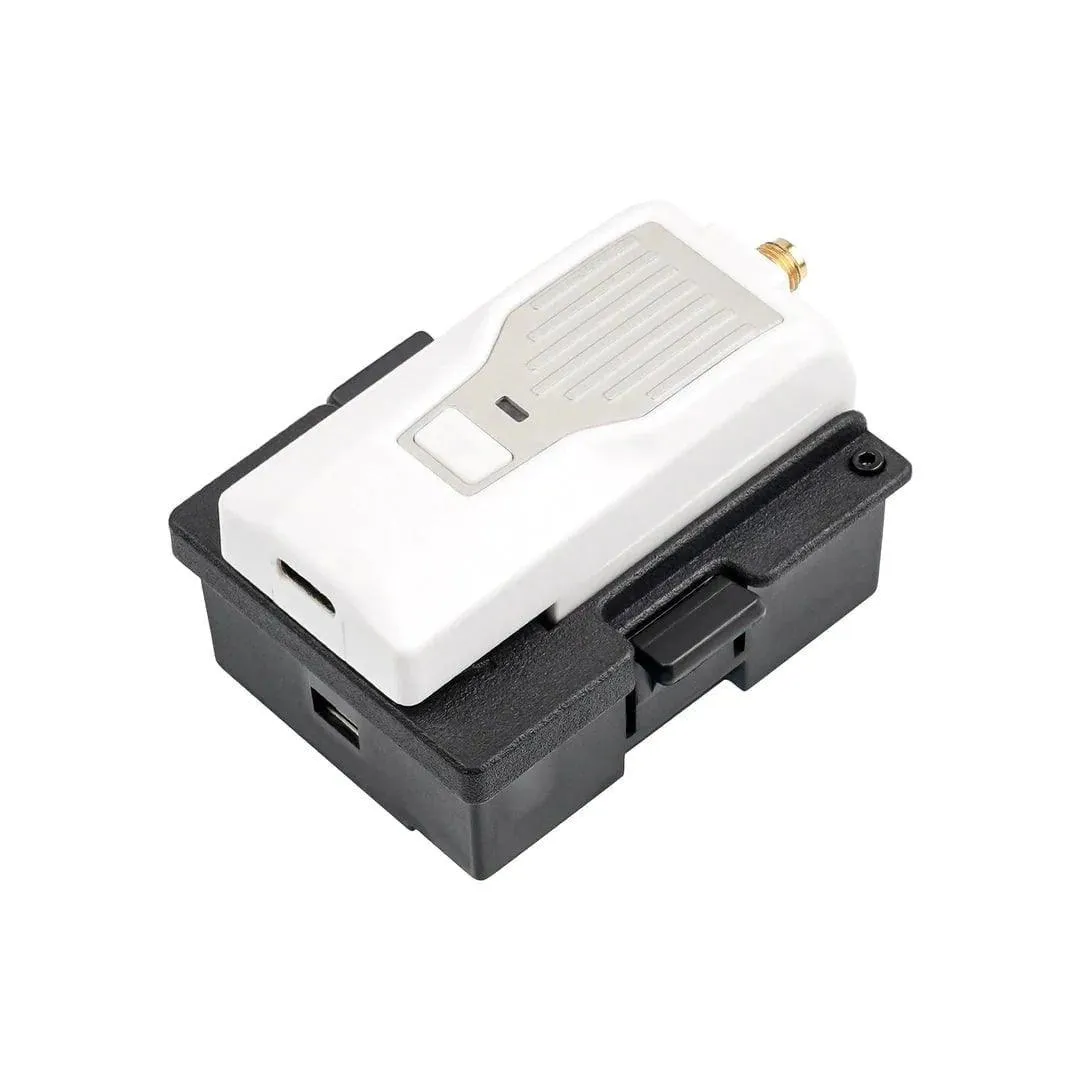

This adapter is a perfect match for the BetaFPV Nano ELRS module in either or !

Check out our  and all our !

Specifications

• Input: JR module bay (Micro module bay)
• Output: Nano module bay (Lite module bay)
• Supported Radio Transmitters: Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S,
• Flysky TH9X, Turnigy 9XR/9XR PRO, FUTABA 16IZ, Jumper T16/T18/T18 Pro,
• Radiomaster TX16S/TX18S, TBS Mambo
• Supported TX Modules: BETAFPV Nano TX Module, TBS Crossfire Nano TX、Frsky XJT Lite/R9M Lite/R9M Lite Pro.
• Dimensions: 65x48x28mm
• Weight: 24.8g

Includes

• 1x Micro-Nano Module Adapter or PCBA
• 1x Converter cable
