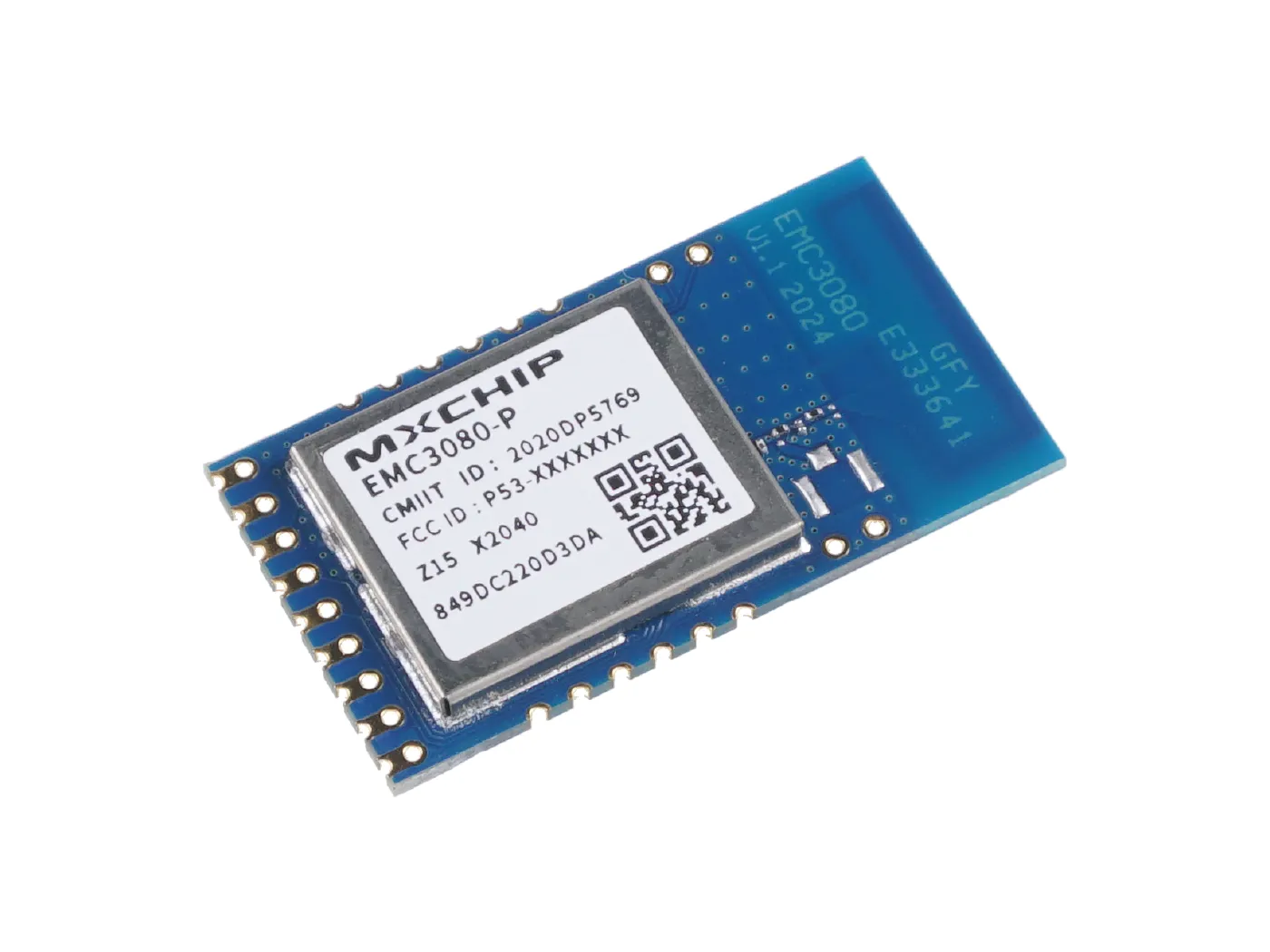

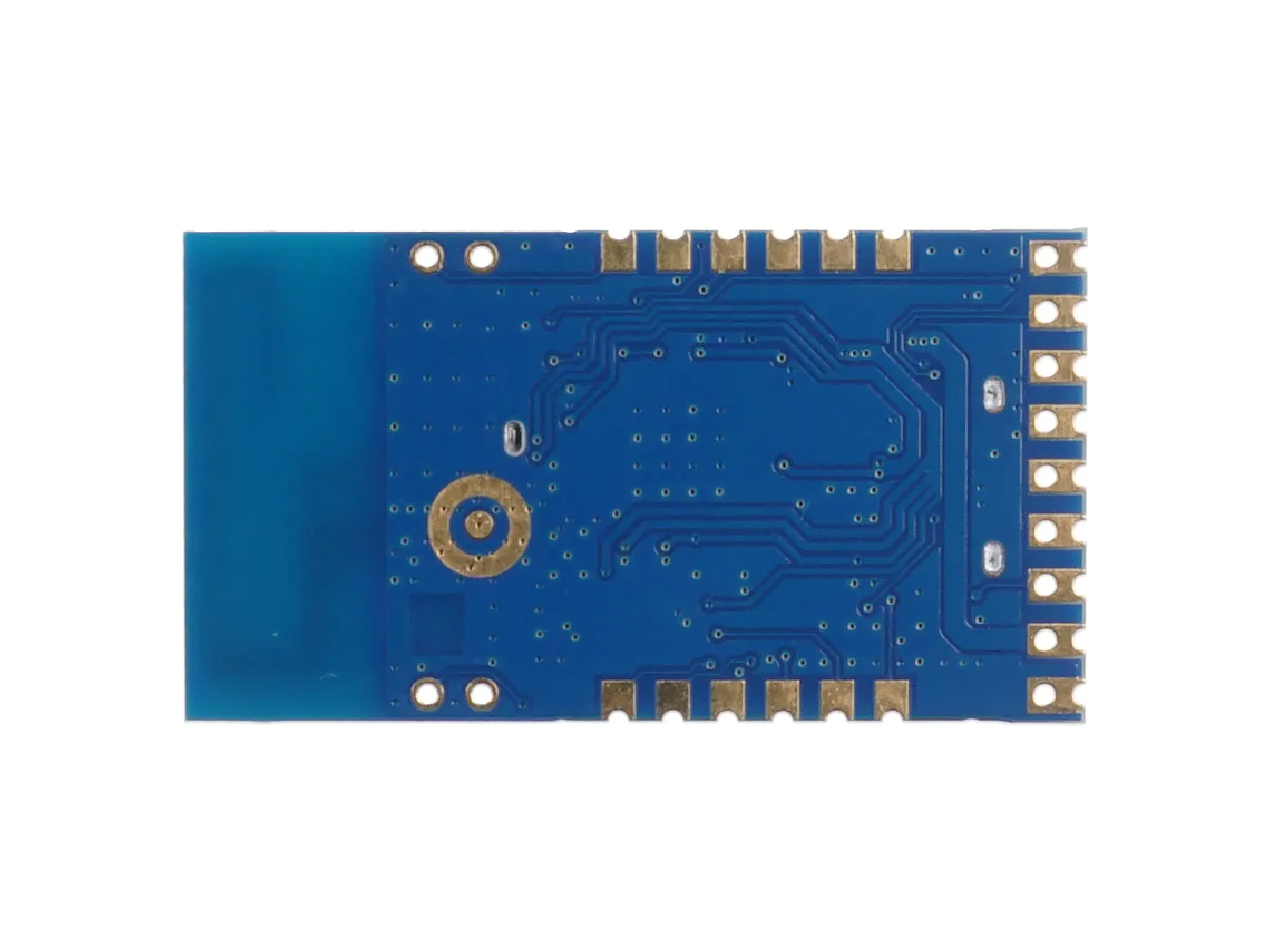

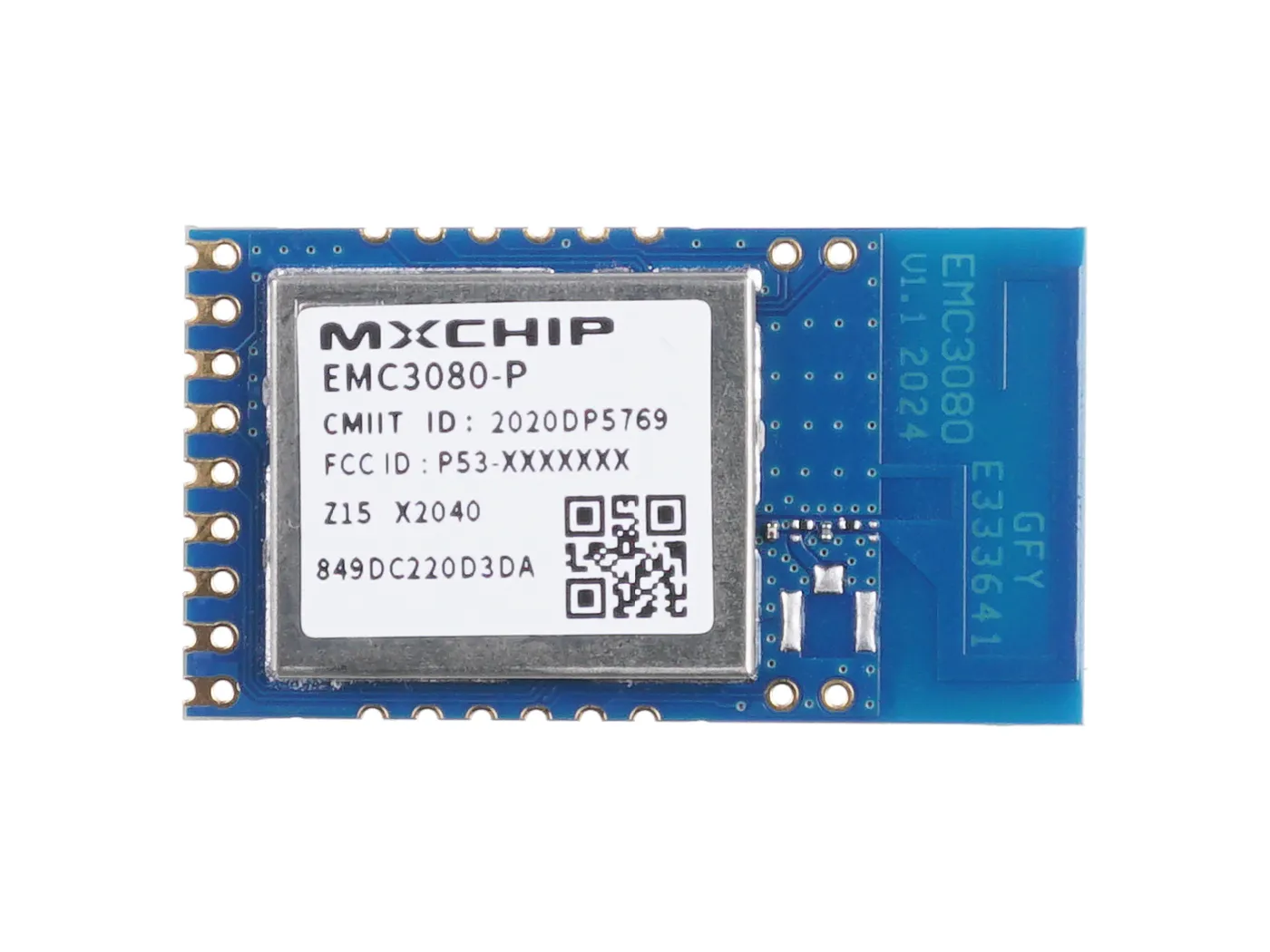

EMC3080

Description

The EMC3080 modules are mainly used for IoT data communication. Data collection and control are realized through a rich peripheral interface, and data can be transmitted to the Internet of Things cloud service platform through a Wi-Fi network connection to realize the Internet of Everything. This series of modules is used in a wide range of IoT applications through a variety of different form factors, interface types, antenna interfaces and temperature range.

Features

• Powerful CPU：Cortex-M33 Processor Core MX1300CF with 256K bytes SRAM
• Advanced Bluetooth：Support Bluetooth 5.0 (BLE single mode). Support BLE Master/ Slave mode
• Wide Working Voltage: DC 3.0-3.6V
• Maximum transmission rate up to 72.2 Mbps with 20 MHz bandwidth.
• High Quality Wi-Fi Features
• More than 10 IO Peripherals such as SPI, I2C

• Operating Temperature：-40℃ to 105℃
• Operating Voltage: 2.7V～3.3V
• Antenna: PCB antenna or IPEX connector (Optional)

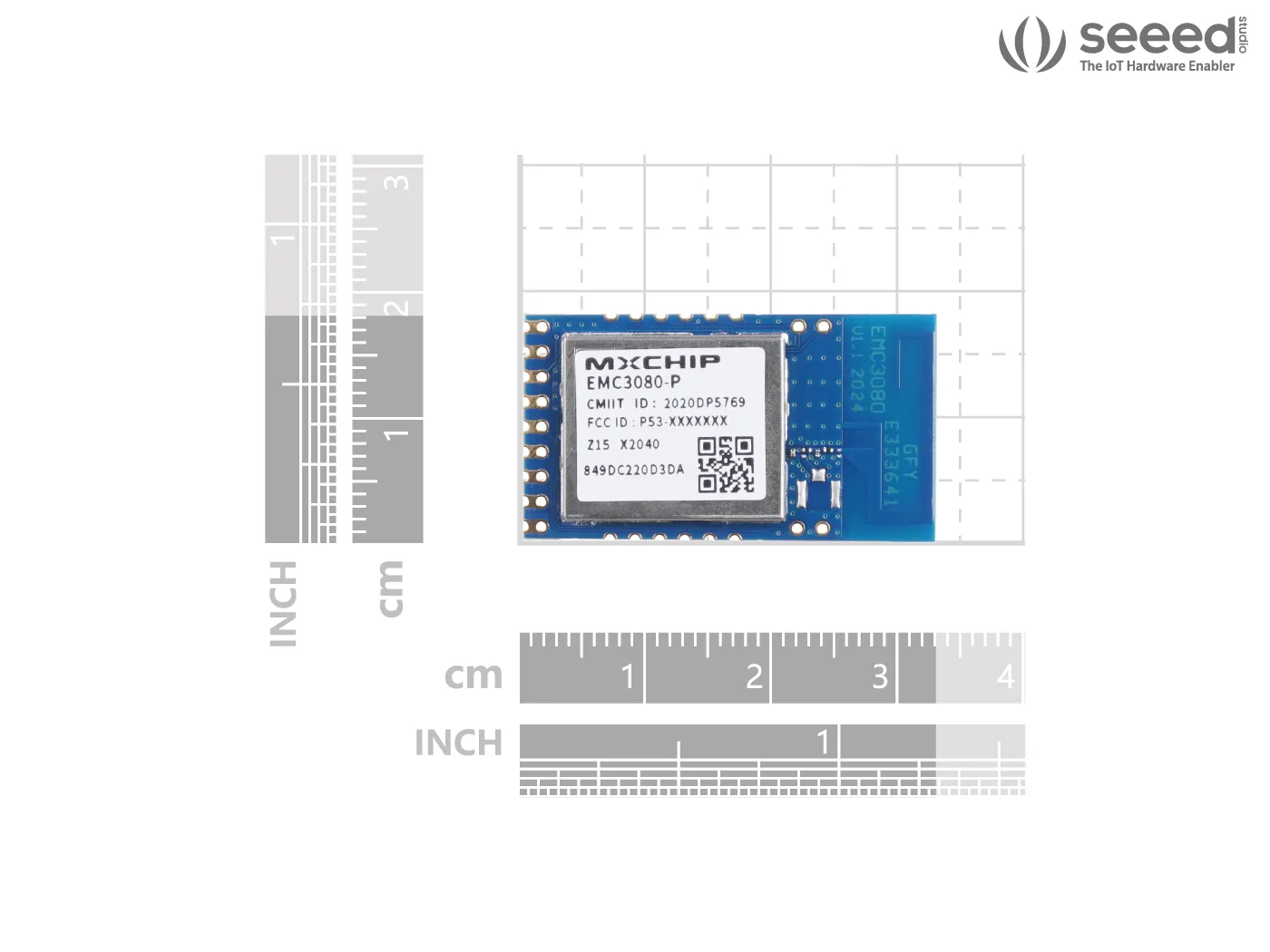

• Length*Width*Height: 2.400*2.600*0.300(cm)
• Weight: 0.003kgs
