Product Details
＋

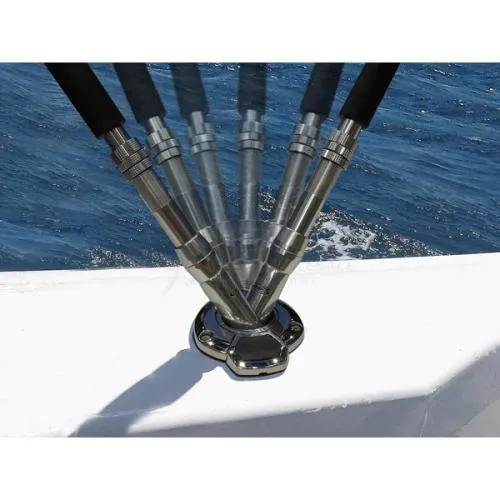

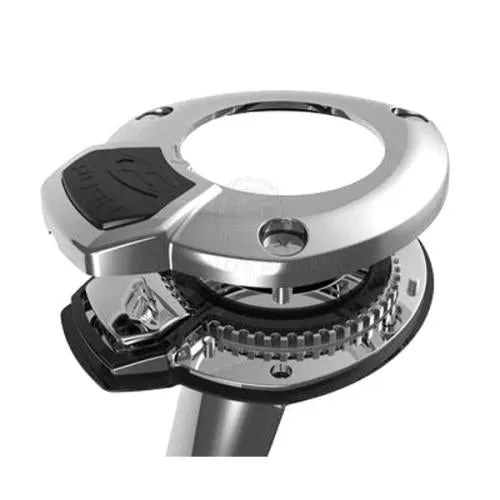

| 360° rotation with locking position in 5° increments. • Cast 316G stainless steel gear head tig welded to the rod sleeve. • Cast 316G stainless steel base plate. • Injection moulded polyethylene top and bottom bearing. • Cast 316G stainless steel top cover. • Rubber gasket. • Tig welded stainless steel gimble pin. • 316G stainless steel locking lever. • Rubber locking lever cover. • 316G stainless steel pivot pin. • 316G stainless steel mounting hardware. |
| Part No. | 491216 |

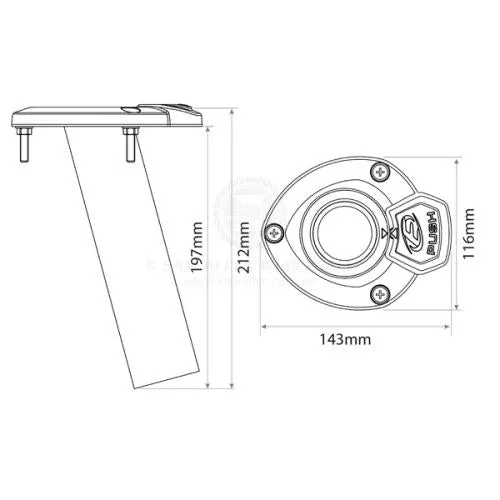

| Length | 212mm (Overall) |
| Type | S/S |
| Shaft Angle | 30° |
| Flange (W x L) | 116mm x 143mm |
| Shaft Length | 197mm |
| Shaft O.D. | 51mm |
| Sleeve Swing Dia. | 253mm |
| Mount Type | M6 |
| Unit Qty | 1 |
